Litestar and Pulse
SEATS..........REMOVAL - REPLACEMENT

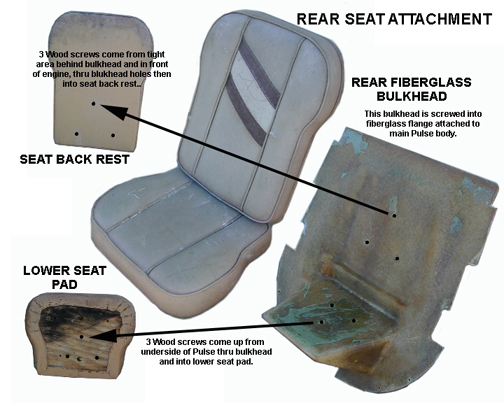

Rear Seat

The rear seat is screwed to the rear firewall from the engine side. The rear firewall must be removed from the Pulse to get at the screws.

First remove both side panels. Then remove the screws holding the rear firewall in place. There are 4 near the top and 2 more down near the floor. Then the rear firewall will be loose. It will take a bit of jockeying it around to get it out of the Pulse. It's a tight fit. Then unscrew the seat pads from the firewall. Because the rear firewall fits so closely to the frame behind the seat, the original rear seat is the best fit.

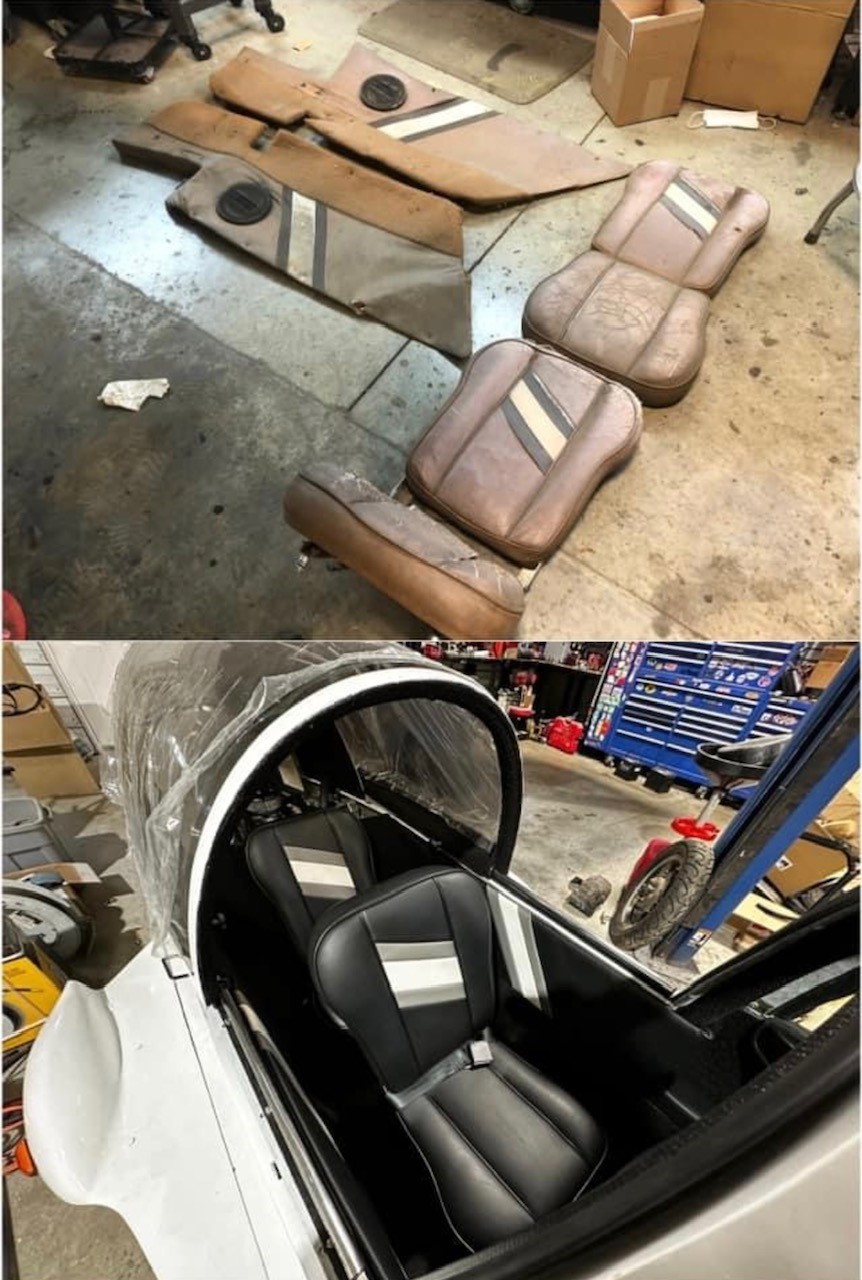

Original Pulse #330 driver seat that need reupholstery. It has a lever that allows the seat to be slid along a track.


Reupholstered seat from Pulse #241 in 2023.


Finding a Replacement Seat

Here's a couple of good seat sites:

http://www.performancecenter.com/

http://www.airdynamicracing.com/

Also try Cabelas. They have boat seats that fold like the Pulse seat.
