Litestar & Pulse Replacement Parts List


Print off this handy list and keep with your engine manual.


How To Tear Down Your Pulse
A Step by Step Primer

The turning radius of a Pulse is about 18 feet.


Original Factory Pulse Parts List from 1986


Here is a quick list of the major parts of a Pulse Autocycle:

FIBERGLASS COMPONENTS:

Main fiberglass body

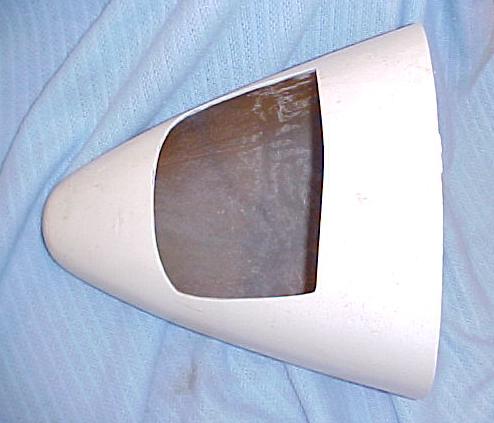

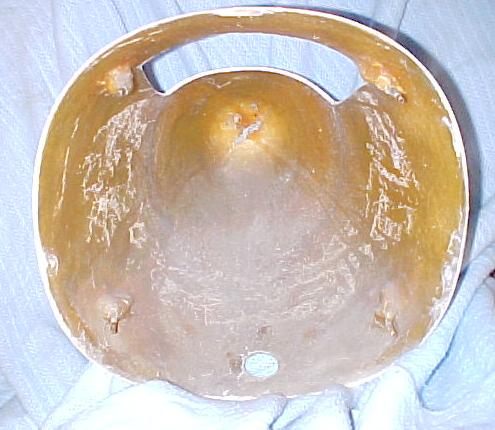

Nose cone
Right upper outrigger
Right lower outrigger
Left upper outrigger
Left lower outrigger
Upper rear body section
Lower rear body section
Gas cover for the upper rear body section
Roll bar cover (over driver's head)
Canopy frame
Glareshield (dash upper cover)
Dash panel
Flip-up headlight cover

STEEL FRAME COMPONENTS:

Main tube frame
Front fork assembly - 2 pieces
Right inner outrigger
Right outer outrigger
Left inner outrigger
Left outer outrigger
Front roll bar
Front axel
Front wheel rim
2 outrigger wheels
2 outrigger wheel axels
Front fork assemble bolts

GLASS COMPONENTS:

Plastic windshield
Plastic canopy
Plastic tailight cover
Plastic headlight covers - 2

POWERPLANT COMPONENTS:

There are many motorcycle engine choices or an electric option to re-power your Pulse.
The Honda 1100cc or 1200cc Goldwing water-cooled engine is the most popular.
NOTE: The factory used the air-cooled Yamaha 400cc engine and later the Honda Goldwing engine. Today, many owners opt to re-power using the Honda Goldwing 1500cc or the Honda Silverwing automatic.

Replacement Fuel Tank

NO IMAGE

Looking for supplier.

Replacement Plastic type Windshields

FROM PHIL MARTIN of OHIO......I have windshields and canopys by a company that makes NASCAR windshields. They are polycarbonate and look great. If interested, please contact me.....Phil Martin - 419-376-7183.....2010

More About Windshields & Canopies


Window Weather Strip

Rubber Weather Strip is avialable from Rockauto -----Part description: Fairchild Part #059925 :

LINK TO Rockauto to ORDER

Plastic Canopies

FROM PHIL MARTIN of OHIO......I have windshields and canopys by a company that makes NASCAR windshields. They are polycarbonate and look great. If interested, please contact me........Phil Martin - 419-376-7183.....2010


CLICK here --- This page discribes removal and replacement of a Canopy

Fiberglass Body Panels - Outriggers, etc.

Click here for more info......Doug Minert of Portage, Michigan

Fiberglass Vertical and Horizontal Aircraft Tail

Looking for Supplier

Interior Seats

NO IMAGE

This Page describes Interior Seats

Body Panels Fasteners

NO IMAGE

This Page describes Body Panel Fasteners and how to replace them

To remove the rear body panels:

First......... remove the rear lower panel. This is the one closest to the muffler. Just unscrew all the screws holding it in place.

Second......remove the upper rear body panel. It can be removed without taking the canopy off. Before removing the upper rear body panel you must disconnect the tail light connector. The tail lights go with the upper rear panel and the wiring must be disconnected. The connector is located on the left rear side, just above the left rear access door.

Third........remove the oval bulk head panel behind the rear seat and package tray. There are screws around the edge holding it in place. Once that panel is out you can see the connector. If you are kneeling inside the Pulse looking to the rear, the connector will be on your right fairly low. Look for the wires. It just unsnaps. Then you can remove all the screws holding the upper rear panel and it will drop. You can then slide it to the rear and off the Pulse.

Pulse Graphics

Make your own Pulse Graphics

TOWBARS

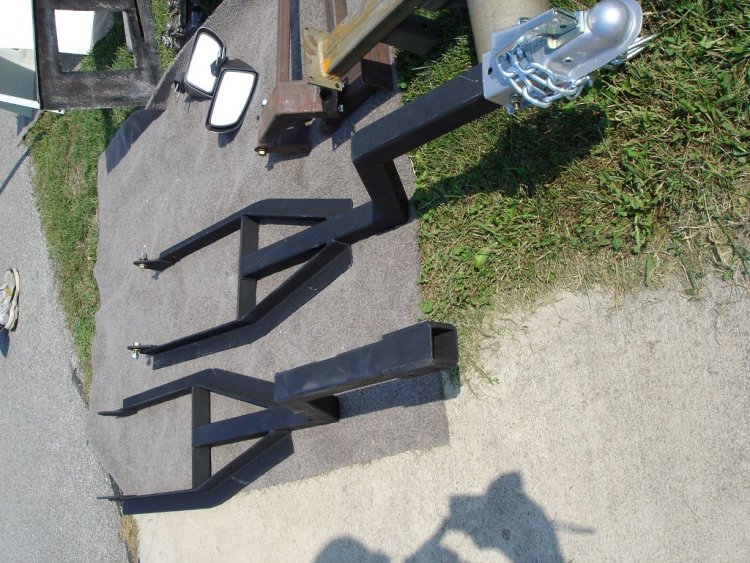

Towbars by Doug Minert

TOWBAR PLANS

Towbar Plans....make your own



Pop-up Headlight



1984-1985 Pontiac Fiero Head light

These headlight mechanisms came from Pontiac Fieros and are well known to have problems. If yours does not work there are several possibilities.

1. Is the headlight system is getting power? Check your fuses, the multi-pin connector under the right side of the dashboard for continuity. If you get power there, the problem is in the headlight assembly.

2. There is a relay in the assembly next to the actuation motor that may have failed. This keeps the motor from getting the voltage it needs to operate.

3. The actuation motor itself may have failed.

If the problem is either 2 or 3, you are in bad shape because the motor cannot be operated with the light down. On the top rear portion of the light, you can see a knob on the top of the actuation motor, which can operate manually by turning the knob. You may have to go to a junk yard and pick up a used headlight assembly.

Speedometer

The speedometer and other gauges are usually taken from the donor bike and used in the Litestar or Pulse dash.


A good replacement speedo gear drive for the axle is Harley Davidson Shovel Sportster 67127-73 Right Side Chrome Speedo Drive 1973-84.

It is an exact match.

Brand is Dixie

Manufacturer part number is 67127-73


The Pulse factory speedo gear is usually located on the front wheel and a replacement can be obtained from a motorcycle shop or some owners have used a bright LED electronic speedometer from JC Whitney that uses 4 magnets wired to the driveshaft and a magnetic sensor. It was calibrated by following another car at a known speed and adjusting a knob on the back. The problem would be finding a place to mount the magnets on a Pulse. You could replace with a 1976-1981 Yamaha XS360 and XS400 motorcycle speedo. Other owners have used a small LED out of an old computer and using electrical shrink wrap to attach the LED to a flexible tube and aimed it at the speedo which can be calibrated for any size tire. OR.....some owners use a cheap handheld GPS velcroed to the dash.

Ignition Switch

NO IMAGE

An exact replacement can be found at "Wal-Mart". The part number is UN12140. It is called Universal Ignition Switch. Manufacturer NIEHOFF. Distributer is BWD Automotive, ..... Borge-Warner?

Honda Goldwing Radiator and Fan

Some owners report cooler engine temps by 50% with an alternative product to anti-freeze called ENGINE ICE. This is very expensive since the amount needed to fill the system which includes a long run of hose from the engine to the front windshield area for the defroster.

Yamaha 400cc Engine

1982 Yamaha Maxim 400cc SJ
Single overhead cam

This is the 400cc RJ engine.

Typical engine -1982 Yamaha SECA 400cc RJ Dual overhead cam or the Yamaha Maxim 400cc SJ Single overhead cam.

Some owners report cooler engine temps if they us SYNTHETIC engine oils. AMSOIL 10W/40W

Note........

The SJ engine has a kick starter.

The RJ engine looks like an sideways H from the top view.


NOTICE TO NEW OWNERS .... BUY A SHOP MANUAL FOR YOUR ENGINE ... IT HAS ALL THE ANSWERS

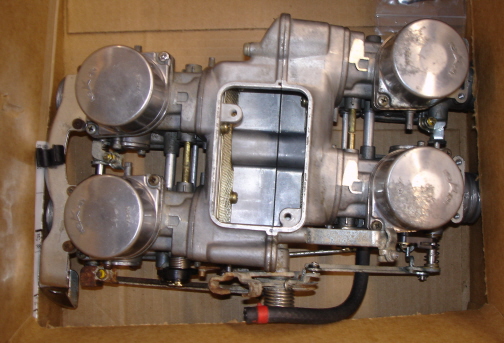

1980 - 1982 Honda 1100cc Engine

NO IMAGE

Typical engine -1980 - 1983 Honda Goldwing engine

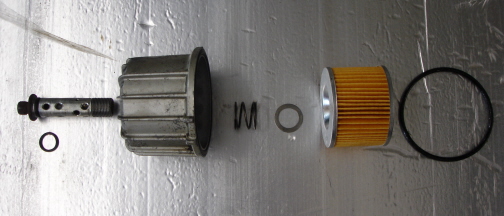

Oil Capacity
Oil only     ~ 2.23 qt.
Oil & Filter ~ 2.64 qt.

Oil Type & Weight
4 U.S. Quarts.....SAE ~ 20W/40 type SE (Summer)
SAE ~ 10W/30 type SE (Winter)

Premium Fuel

All Litestar and Pulse Shocks



(Old Numbers) Monroe Load Leveler 575
(Coil over shocks used front and rear)

Gabriel Air-shocks # 729773
Jim Finch installed a pair of coil over shocks from Autozone part # 43048 . "I removed the front air shocks and installed coil over shocks. They fit without any changes just bolt them in. The ride is much better and the ride height came out just right. They sell for about $80.00 a pair in 2010. They were to fit a CJ7 jeep."

HERE IS ANOTHER SHOCK .....Gabriel Air-shocks # 729773

Also check with your local NAPA store

More About Shocks

All Litestar and Pulse
Front Calipers

1983-1987 Dodge Omni, Renault or AMC Alliance *AutoZone P/N C945

(This is the passenger side caliper.  It is  used for both the front and rear calipers)



Front Rotor

FRONT ROTOR...Dodge Omni

Wearever Brake Rotor....part #YH141268
Aimco......part #5328
NAPA.....part 385885
Raybestos....part #7003
Bendix....part #141268

Front Brake Pads

1983-1987 Dodge Omni, Renault or AMC Alliance AutoZone

Some Pulse calipers are from a 1983-1987 Renault Alliance. The pad stock number is MD218. Or from a 1987 AMC Alliance (Passenger Side) - AutoZone P/N C945

Disk brake calipers are the same front and back.

MORE ON BRAKES AND REPAIR

P/N MD218

Front Rim

13 inch four bolt rim from a 1983-1987 Dodge Omni or AMC Renault Alliance

Tires..... Front

145 or 155 SR 13 Radial (*Recommend Michelin 155SR13 XW4 Black wall, this is a symmetrical tire)

MORE ABOUT FRONT WHEEL REPAIRS

Here is a Front Wheel Modification by Don Willi that makes removing the front wheel a snap.

Video #1

https://m.youtube.com/watch?feature=youtu.be&v=qeAytO2f8r8

Video #2

https://www.youtube.com/watch?v=hYxD333KySI&feature=youtu.be

Note: ...............

Tire Pressure ~ 30 to 35 PSI
I recommend using 35 PSI on the rear tire if you have the reverse unit.
Note: Running a low tire pressure on the rear tire will allow the reverse unit to spin against the tire.

MORE ABOUT TIRES




Tires........ Rear

Depending on your engine make and model and year......contact either Yamaha or Honda and ask which tire they recommend.

Note: 145 is the width in millimeters - 13 is the rim size in inches Make sure the tire is symmetrical in tread design.  The 155 width is the maximum size that will fit without spacing out the rear sprocket and creating chain alignment problems - Yamaha Chain drive models.

Tire Pressure ~ 30 to 35 PSI
I recommend using 35 PSI on the rear tire if you have the reverse unit.
Note: Running a low tire pressure on the rear tire will allow the reverse unit to spin against the tire.



Outrigger tires used on all Owosso built Litestar and Pulse

4.80x8 - Four Bolt 8" Trailer Rim ..... Available at TSC or Walmart for about $50.00. If you need just the tire, they are about $35.00 in 2013

Use a high quality 2 or 4 ply tire rated for Highway speed *Recommend Carlisle Brand
Note: Balance tires to provide for a smooth ride and to prevent repeated excess wear in one spot of the tire.  An unbalanced outrigger tire will rotate to the same position during its rest position (no road contact). Each contact with the road will then create excessive wear in one spot on the tire.  Run the tire  pressure between 10 to 20 PSI for increased tire wear and a smoother ride. The low tire pressure allows the sidewalls to flex thus reducing the scuffing effect/wear.
Note: Running a low tire may require tubes in the tires to prevent the tire from popping off the rim. (I prefer using tubes)

MORE ON OUTRIGGER WHEEL ADJUSTMENT AND REPAIRS
You can purchase a tire and rim together at Wal-Mart or TSC for about $50.00 each in 2013. Just the tire is about $35.00



Outrigger tires used on the Scranton, Iowa built Litestar

2.80x2.50-4 Tail wheel TT MCCREARY

Front Wheel Bearings



BEARINGS -

Timken Sealed Cone bearing L44600-LA and matching race.
(This bearing has a built on seal).
Always replace the bearings and races as a matched set.  Do not use an old bearing with new race or vice versa

Axles.....Seals

Cone roller bearings are used in the Pulse and are the same for the front and rear axles. This cone roller bearing is a combo bearing and seal. The seal is bonded to the race of the bearing. So to replace the seal you need to replace the bearing. The cone roller bearing replacement is a TIMKEN L44600L.You should replacing the cone roller bearing with its matching race. Never install a new bearing with an old race or vice versa. Also dont forget to pack the bearing with grease before installing it.

Replace the front end bushing with a bronze or Oilite bushing. Your local machine shop can turn these out fairly cheap. The bushings are carrying about 50% of the total load (weight) of the Pulse and the loads are increased when braking is applied. Using rubber, Teflon or any similar type material will pound out in a very short time and created steering problems.


STEEL HUB

Bob Hichborn of Florida can supply new hub and make adjustments such as, 5 hole for different style wheels, change the offset of the mounting plate for wheels with offsets other than the old Omni wheel. Adjustments can also be made for various mounting plates for different brake rotors. If you get into this you'll need different caliper mounting plates. As long as you maintain the original tire height and width, you can go to a thin, lower profile 14 or even 15 inch wheel.

Outrigger Bearings

Standard trailer replacement bearings. Always replace the bearings and races as a matched set.
Do not use an old bearing with new race or vice versa.

Bob Hichborn of Florida can supply new steel outrigger support blocks and steel parts.

Master Cylinder

1978-1983 Ford Fairmont without power brakes *Discount Auto Parts P/N 10-1763

A fluid line fitting adapter maybe required.

Steering Box

Left - is the gear reduction type.*

Right -
Gm 1964-1985 SAGINAW Model #122
Pulse #199 has the SAGINAW steering gear box.  This is a true steering gear box.

MORE ABOUT STEERING REPAIRS

Mullins Steering Gears Steering Boxes

The steering linkage is on the right side not the left as when the reduction unit is used.

Steering Wheel

No Image

Mfg. Unknown...... Early Litestars used a Butterfly type wheel from a go-kart....then the factory switched to a round wheel.

CONTACT CHUCK FURGASON ABOUT HIS STEERING WHEEL REPLACEMENT ANSWER

Reverse Motor

Brushtec MFG. ???

(Do an internet search) They sell many parts for the Honda Goldwing 1800
For repairs ....check with your local alternator repair shop ...they might be able to replace the endcap for under $50.00. That should improve the power. The biggest problem with this setup is the drive cone has a tooth like design, this provides a very small contact area with the tire. If the driver was a slightly treaded roller shape, it might have more surface area against the tire and be much more efficient. The Reverse is only good on level, paved ground. If you try your OMCC factory reverse on grass or gravel or paved uphill, you are going to chew the tires to pieces.

MORE ABOUT REVERSE UNITS

Wiper motor

No Image

MFG. Unknown.....some owners are using only RAINX and find that it works well

Speedometer Gear

No Image

MFG. Unknown....some owners are now using a handheld GPS

INSURANCE

GEICO CYCLEGUARD ..... liability only policy offered in 2004..... for $200 annually. Phone ..... 1-888-434-2600.

GMAC Insurance Touring Riders Insurance..... 800-325-1190....Premium was $274 a year in 2003.

Hagerty Insurance ..... Will not insure unless you have been a previous Pulse policy holder with them.

State Farm............In 2005 ......$425 per year with an agreed value of $17,000. No milage restrictions. $500 ductable comprehensive/collision w/emergency roadside and uninsured motorist.

More info here on Insuring the Pulse
